Nocturnal, do you have a high res image of the panda cpu showing all the pin names? The corner I can see in your article has a good match to the pins of the SunPlus GPCE (here's one datasheet link). My apologies if you've already figured that out, my eyes get tired of reading orange on black!
ps also can you see the xtal frequencey?
Close, thats actually almost identical to the one I think it probably is, your just missing the ICE port and a little bit of memory.
Its actually a pity that the resolution of the photos in the FCC filings is so low, otherwise we would be able to read the markings on the chip. Unfortunately as they are, its a little to blurry.
The gallery limits image to 900px, so its no surprise you can't read the labeling. I have a photo of the top and bottom. If you want better quality and more detail I'll have to pull out the scanner.
I also have made available copies of the datasheets for the probable cpu, probably SPI ROM, bus extenders, possible SND01A chip, and the eeprom here. The unlabeled epoxy chip is probably an audio amplifier, but I haven't confirmed that.
Oh, I almost forgot, I can't quite read the labeling on the crystal (I'll need to pull out a magnifying glass), but it looks like a standard 32.768khz watch crystal.
BTW, have you ever heard of SACM_S200?
I have found somewhere on chinese sites set of audio utilities for sunplus.
I have encoded sample files, but they does not looks similar (none of it has 32/48 byte frames).
I'll post sample files and utilites at evening when I will be at home.
Found it again here: http://211.64.32.2/dzxywlx/shiyanshi/index0/pic/faming/
*Nods* I found that as well. The difference would be that SACM_S480 is a much higher quality codec.
for 07 codec 32 bytes readed for every 12.5 ms - it's 20kbit/s...
32/0.0125*8=20480
09 codec - 48 bytes at 20 ms - 24kbit/s
48/0.016*8=24000
So it looks like a2000 codec, but byte patterns is very different...
heh, after reading GPCE data sheets last night, I'd settled on the GPCE061AV11 as well.
That'd make sense since the crystal pads are marked 'X32', which fits for a watchdog timer. Some of the datasheets make it look like the 'SACM' are voice synthesis algorithms rather than codecs. Sevik, which of the links on that page are you referring to for the utilities? Thx also for the links to images etc!
Look near the bottom of the page, on the left hand side, in the box labeled " Voice TOOLS"
I have tried different values as codecs.
Sound for 4,5,6,7 codecs looks similar and noise-like with increasing frequency.
Sound for 8 fnl 9 codec is very different and sounds as random beeps.
Looking at rates and frame sizes 4-7 codecs can be 2bit adpcm or something like wit 5,6,7 and 8 kHz sample rate.
And according to sound 8 and 9 codecs is something like mp3/lpc/celp/etc framed, bit-packed codec.
But similar looking 00 00 .. 88 sequences for very different codecs support idea of scrabling audiodata.
Update:
Some more experimenting with more regular data saws no principal difference between different codecs...
Seems difference was dependent on frame size of test audio and its relation to tested codecs frame size (was used encoded using sunplus tools 20k sample file)
All 0 datafile roduces silence in 7 and 8 codecs (others not tested), so scrambling idea not confirmed...
A question re stringing together the audio chunks, are they read sequentially, or is there any thing that indicates the sequence of chunks? Also, did you guys look at the 'SPCE061' section on that page? That seems to be a closer match than the GPCE061 imho. Not that knowing the exact mcu would help much, as I have painfully learned!
There are CPU bytecode for starting of chunk number X play
Code used for testing of player:
0020: 0004 push #0004 // push 0004 to stack 0021: 291A volume // pop volume from stack 0022: 0002 push #0002 // push 0002 to stack 0023: 2928 play // pop audio index from stack and start play L0_1: // xrefs: 0026 0024: 0000 push #0000 // push 0000 to stack 0025: 297E drop // pop and drop value from stack 0026: E7FE rjump L0_1 // jump to 0024push #2 at 0022 - it's an index of audio chunk in table at start of cartridge
index is 1 based starting at 0005, 3 bytes for chunk address
I tried to shift data 1 byte right with xoring by magic string before and after - this produces Darth Vader like sound :))
playing codec 7 audio data with codec 6 - produces r2d2 like sound :))
Seems there are star wars inside :))
http://sevik.org/robopanda/test_codecs.wav
Sounds:
original sound
shifted 1 byte sound
original sound
codec 06
original sound
codec 08
original sound
codec 09
Code:
0020: 0004 push #0004 // push 0004 to stack 0021: 291A volume // pop volume from stack 0022: 0001 push #0001 // push 0001 to stack 0023: 2928 play // pop audio index from stack and start play 0024: 2923 wait_play // wait for and of play 0025: 0002 push #0002 // push 0002 to stack 0026: 2928 play // pop audio index from stack and start play 0027: 2923 wait_play // wait for and of play 0028: 0001 push #0001 // push 0001 to stack 0029: 2928 play // pop audio index from stack and start play 002A: 2923 wait_play // wait for and of play 002B: 0003 push #0003 // push 0003 to stack 002C: 2928 play // pop audio index from stack and start play 002D: 2923 wait_play // wait for and of play 002E: 0001 push #0001 // push 0001 to stack 002F: 2928 play // pop audio index from stack and start play 0030: 2923 wait_play // wait for and of play 0031: 0004 push #0004 // push 0004 to stack 0032: 2928 play // pop audio index from stack and start play 0033: 2923 wait_play // wait for and of play 0034: 0001 push #0001 // push 0001 to stack 0035: 2928 play // pop audio index from stack and start play 0036: 2923 wait_play // wait for and of play 0037: 0005 push #0005 // push 0005 to stack 0038: 2928 play // pop audio index from stack and start play 0039: 2923 wait_play // wait for and of play L0_1: // xrefs: 003C 003A: 0000 push #0000 // push 0000 to stack 003B: 297E drop // pop and drop value from stack 003C: E7FE rjump L0_1 // jump to 003Ahm interesting... so is 'touch my arm to see what i've learned' a single audio chunk, and is it normally the first chunk in the index? or have you just stored it there for convenience in your testing? I'm still not clear on whether multiple chunks are played in sequential order when panda says something, or is each chunk a complete saying/recording?
it's first in original black cartridge
for testing I compiled test cartridge with 5 different variants of this chunk:
original index 1
shifted index 2
with 06 80 instead of 07 80 in header index 3
08 80 - index 4
09 80 - index 5
and code from previous message as cpu code.
http://sevik.org/robopanda/test_codecs.bin
chunks which I checked - is complete phrases.
ok, so a whole sentence is in one chunk then, at least most of the time. Would it be possible for you to capture the speaker output as a wav file, so we have a 'before' and 'after' to compare? (I know it won't be perfect because your capture would only be an approximation of what was fed to the dac).
I have not dissected my panda yet :)) You can write this cartridge image to any spi rom and check for yourself :))
For before and after - I think it will be very different.
For real audiodata analyze there are need for many small test for each bit position in frame to identify bit fields boundaries and it's meaning.
I think there are one general principle for all codecs implemented in robopanda and some of codecs implemented by "Voice Tools". They must have comparable number of coefficients, but with different resolution and some coefficients omitted in lower bitrates.
If you check voice tools output for 20k codec - there are 96 bytes frame with similar structure - low "1" count at start in random positions, and many 10..0 sequences at end.
I think magic string is tightly related to bifields boundaries :))

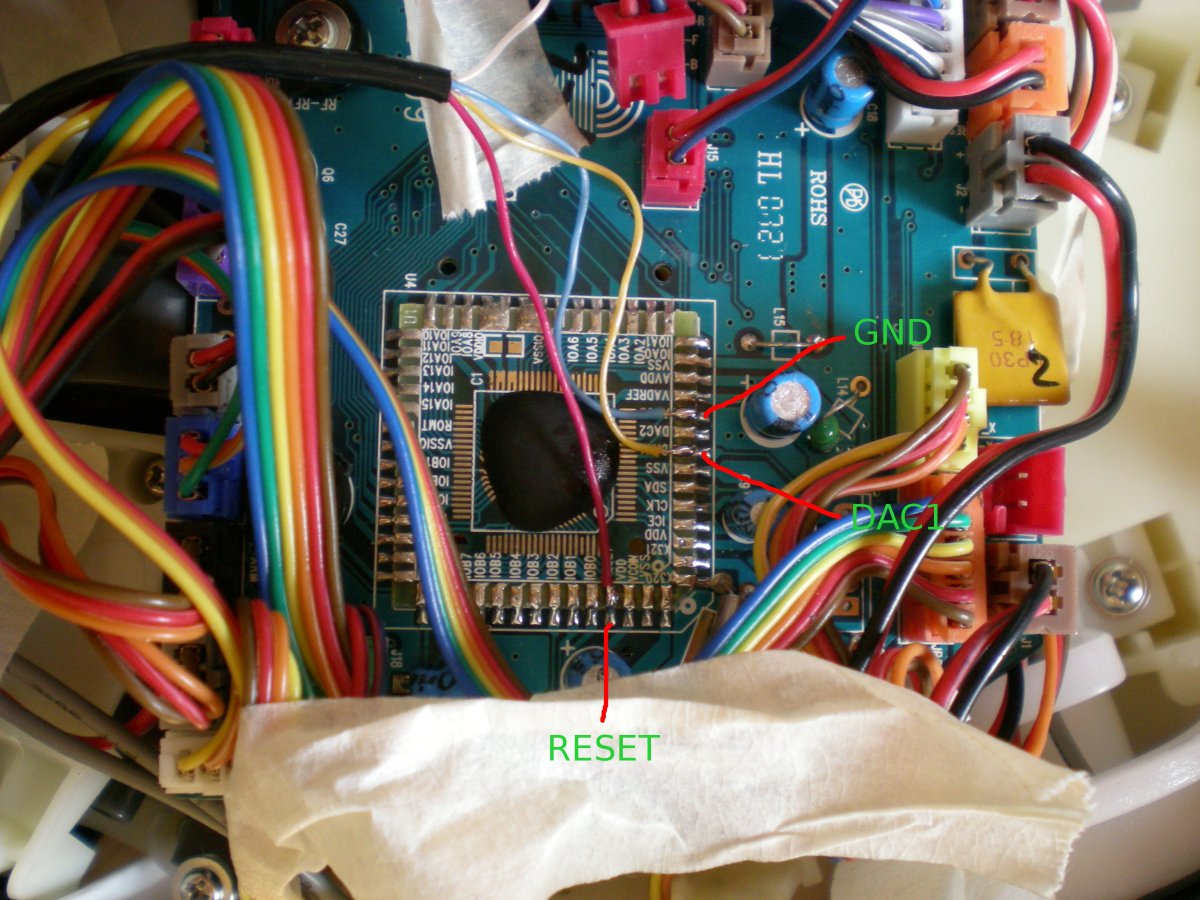

Attached to DAC1 output...
Using scope - there are not seen remains of discretization rate or PWM of some sort.
Will check further using linear input of audiocard.
Wav files posted to http://sevik.org/robopanda/
http://sevik.org/robopanda/training.wav
http://sevik.org/robopanda/00669.wav
http://sevik.org/robopanda/00757.wav
http://sevik.org/robopanda/00837.wav
http://sevik.org/robopanda/00791.wav
http://sevik.org/robopanda/00792.wav
splited filenames match *.aud files in dump_cartridge_black in emu_logs tarball
anybody still alive? :))
tools and emu_logs tarballs updated with new disassembler.
sorry, just getting off work... where in the world are you, Sevik? I'm in Midwest USA. you seem to work about 0xA times faster than anyone else I know!
Still alive, just waiting for some suitable spi flash memory chips I ordered to arrive. I should already have something suitable, but I can't seem to locate them.
:))
I'm in Ukraine (UTC+3).
I'm waiting for new FPGA board from ebay too :)) Just in case ordered 2 of them :))
When it arrives I will slow down with Robopanda for some time :))
For now most important task with robopanda is audio data decoding, but I dont have enought exp wih this...
Anybody with needed skills wanna help? :))
According to webserver logs there are about 10 persons downloaded *.wav and *.aud :)) So dont hide, we known - you are there :))
I didn't think you were in the US, not with the times your were posting. I'm in Australia (UTC+10).
About 17 people have downloaded the binary module images in the last 30 days, we haven't heard a peep out of them, we're probably not going to hear a pep out of the people downloaded your audio file (one of them would have been me), but we can always hope there is an expert audio engineer lurking out there.
I can think of a few things to try with the audio formats, but its outside my skill set. I've only ever worked with audio at a high level, never low level.
I believe in humanity :))
We cannot be lost in soundless universe :))
ditto deleted
I'm another who downloaded from both your sites, and in similar situation vis a vis skillsets... but it's never to late to learn, if we can find a source to learn from. I think the university level computer science courses have audio modules that may be helpful, I'm looking for a local one today.

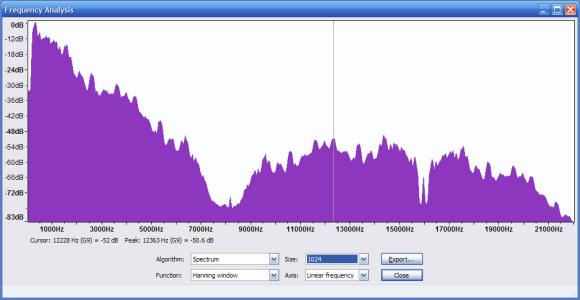

hi Sevik, looking at your capture of the 00792.wav (and the others), there are pronounced dips in the spectrum at 8 and 16 kHz. You captured these at 44100 kHz, right? To me, this looks like filtering of the original sampling frequency, so I'd suggest the audio was originally sampled at 8k before compressing. Nocturnal, have you looked at the circuitry between the ADC outputs and speaker? I'm curious if only one or both ADCs are in use?
Just playing with the data rates, the 00792 chunk from the black cartridge is 7845 bytes, or 245 reads x 32 bytes. At 16 msec per read that's 3.9925 seconds to read the whole thing, which correlates pretty well with the length of your recording. That amount of time recorded in 16 bit PCM at 8 kHz would be 62760 bytes, so that means an 8-fold compression ratio. (which also pops out if you assume a read of 8kHz x 16 bit sound every 16 msec requires 256 bytes per read, or exactly 8 x the 32 bytes actually read). Ah well, off to troll the library!
Original data is very likely 8kHz/16 bit - it's format required by both utilities from voice tools.
If you do spectra for short samples - you will see peaks doubled around 8 kHz and doubled again around 16kHz. It's a classic sample of discretization spectra.
Second dac output seems to be unconnected, see this photo
I'm going to capture one of songs (9 codec), to see what we get from it :))
